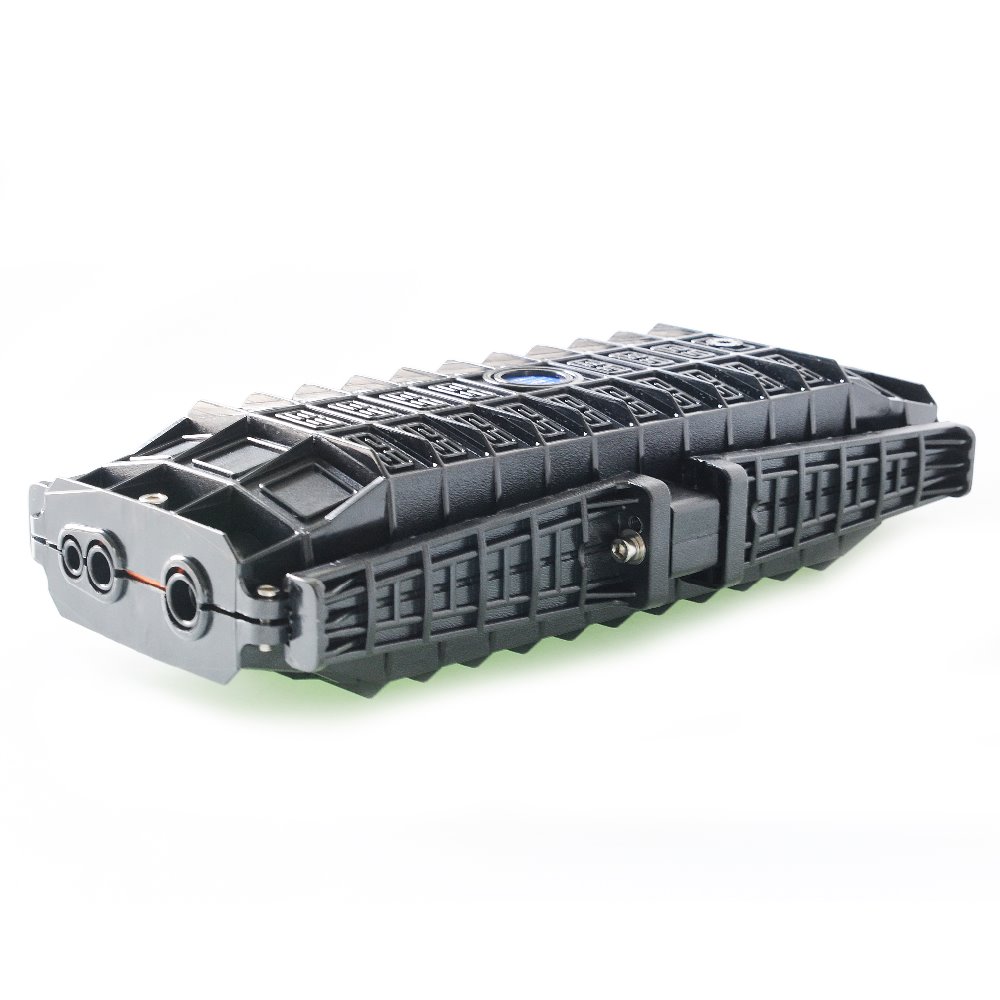

Horizontal Optical Splice Closure
Fiber Optic Splice Closure
GJS-H004
• For aerial, buried, wall and pipe wall use
• Gasket ring using a special material that can be repeatedly use
• Splice tray easy to use page design
• Fast way to make maintenance easily
• Air valve and earthing cable devices can be installed
• Advanced internal structure design
• Easy to open and reuse
Specifications:
This installation manual for the Fiber Optic Splice Closure ( FOSC), as the guidance of proper installation.
The Scope of application is :aerial, underground, pipeline. The ambient temperature ranges from -40 to 65℃.
|
Cable ports |
Cable Diameter |
Max. Capacity |
Core capacity per tray |
|
|
450×220×110mm |
6 |
φ13×2 φ20×2 φ23×2 |
Bunchy:96 Ribbon:288 |
Bunchy:12-96(cores) Ribbon:72-144(cores) |

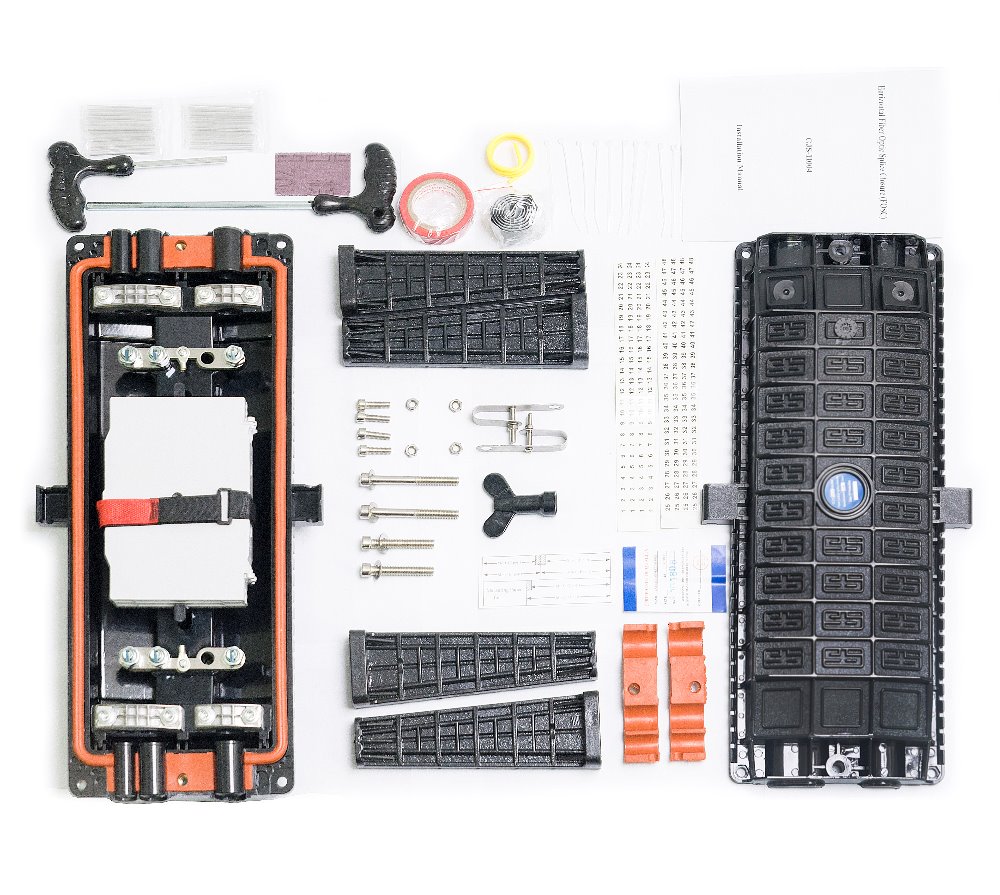

.jpg)

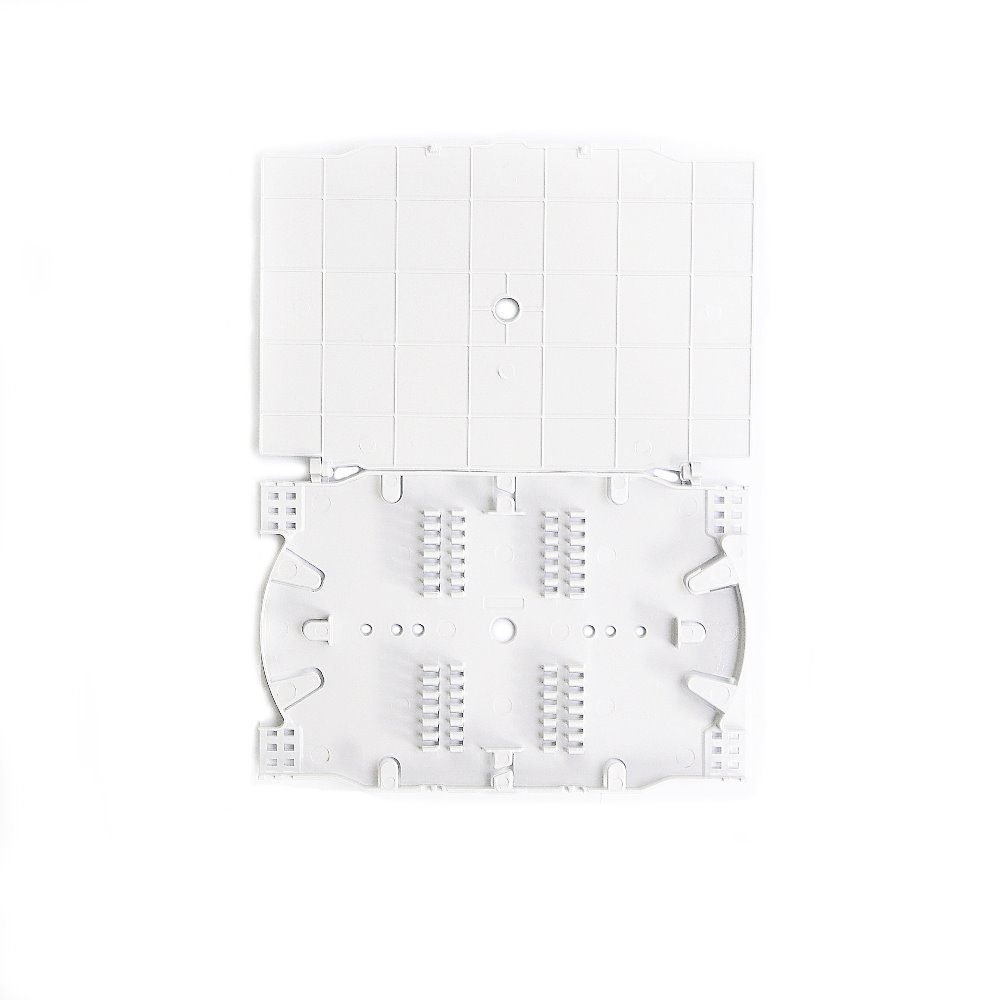

Trays:
|
Capacity |
Size: L×W×H |
||
|
FOST006 |
Bunchy |
single:12 cores double:24 cores |
160×106×10mm |
|
Ribbon |
6 pieces |
||

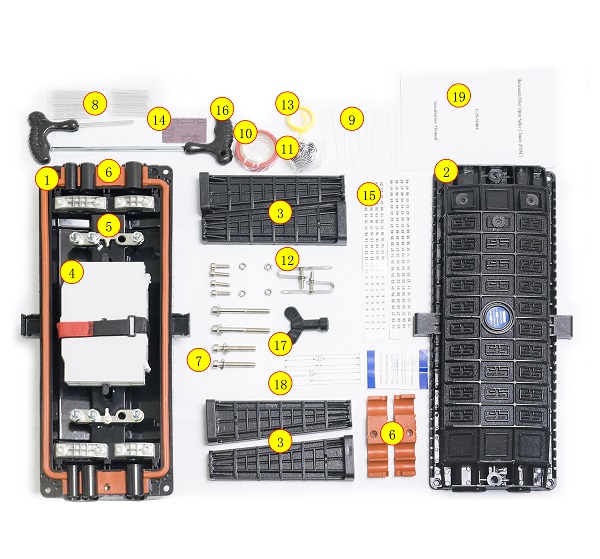

.jpg)
Configuration:
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
Housing(bottom) |
1 set |
Protecting fiber cable splices in whole |
Internal diameter:378*136(mm) |
|
2 |
Housing(cover) |
1 set |
Protecting fiber cable splices in whole |
Internal diameter:378*136(mm) |
|
3 |
Insert plate |
2 pairs |
Fixing the housing |
175*56*30(mm) |
|
4 |
Fiber optic splice tray(FOST) |
Max. 4 trays (bunchy) or 4 trays (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy: 6,12,24(cores) Ribbon: 3,6 (pieces) |
|
5 |
Foundation |
1 set |
Fixing reinforced core of fiber cable and fiber optic splice tray(FOST) |
|
|
6 |
Seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
|
7 |
Port plug |
6 pieces |
Sealing empty ports |
|
|
8 |
fixed bolt |
1 sets |
Fixing the housing |
|
|
Main accessories and special tools |
||||
|
9 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
10 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
11 |
Insulation tape |
1 roll |
Enlarging diameter of fiber cable for easy fixing |
|
|
12 |
Seal tape |
1 roll |
Enlarging diameter of fiber cable which fits in with seal fitting |
Configuration as per specification |
|
13 |
Hanging hook |
1 set |
For aerial use |
|
|
14 |
Earthing wire |
1 piece |
Putting through between earthing device |
|
|
15 |
Abrasive cloth |
1 piece |
Grind the fiber |
|
|
16 |
Labeling paper |
1 piece |
Labeling fiber |
|
|
17 |
M8 Special wrench |
1 piece |
Fixing bolts of housing and insert plate |
|
|
18 |
M6 Special wrench |
1 piece |
Fixing small bolts of housing |
|
|
19 |
M10 Special wrench |
1 piece |
tightening nut of reinforced core |
|
|
20 |
Measuring paper |
1 piece |
To measure circle,of which its diameter is enlarged with seal tape |
|
|
21 |
Instruction manual |
1 piece |
standard installation |
|
|
Optional accessories |
||||
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
Air valve |
1 set |
After injecting air it is used for pressure testing and sealing testing |
Configuration as per requirement |
|
2 |
Earthing device |
1 set |
Deriving metallic components of fiber cable in the FOSC for earthing connection |
Configuration as per requirement |
|
3 |
1 bag |
Put into FOSC before sealing for desiccating air. |
Configuration as per requirement |
|
|
4 |
Protect tube |
decided by the customers |
Hitched to fibers and fixed with FOST, managing buffer. |
Configuration as per requirement |
Package:
|
No. |
specification |
Carton size(cm) |
Capacity |
N.W |
Remarks |
|
1 |
inner box |
45.8×21.5×12 |
1pcs |
2.85-3.3KG |
Configuration as per weight |
|
2 |
outer box |
63.5×46.5×47 |
10pcs |
28.5-33KG |
Configuration as per weight |
