FTTH Optical Terminal Box

Share to:

Send Inquiry

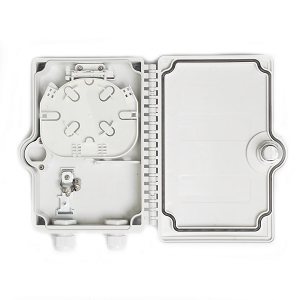

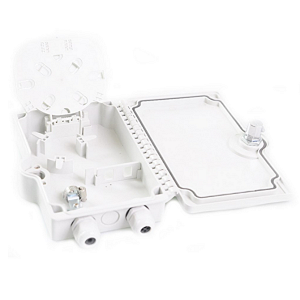

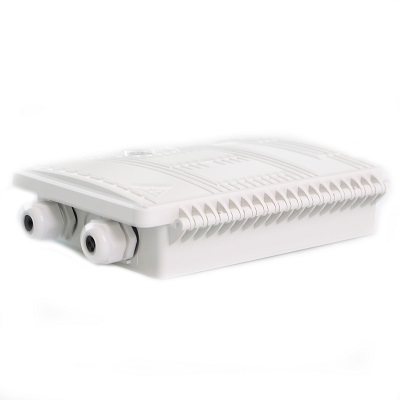

FTT-FTB-H204 Terminal Box

FTT-FTB-H204

Feature:
• User familiar industry interface, using high impact plastic PC/ABS
• Design for the installation and application of LC(Deplex)/SC adapter
• Design for outdoor cable or indoor drop cable;
• Wall mountable
• Weight：0.48kg

Specifications:

Size: L×W×H	Function	Adaptor type	Protection grade	Max capacity(F)
208×153×52mm	Cable terminal,	SC/LC	IP65	4 cores of LC(double core) or 2 cores of SC

 Package:

No.	specification	Carton size(cm)	Capacity	N.W	Remarks
1	inner box	22.2×16.5×6	1pcs	0.8-1.0KG	Configuration as per weight
2	outer box	67.5×46×33	20pcs	16-20KG	Configuration as per weight





Optional accessories
No.	Name of components	Quantity	Usage	Remarks
1	Pressure testing valve	1 set	After injecting air it is used for pressure testing and sealing testing	Configuration as per requirement
2	Earthing deriving device	1 set	Deriving metallic components of fiber cable in the FTB for earthing connection	Configuration as per requirement
3	Desiccant	1 bag	Put into FTB before sealing for desiccating air.	Configuration as per requirement
4	Heat shrinkable protective sleeve	Configuration as per requirement	Protecting fiber splices	Configuration as per requirement



Services:
1. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2. All of our goods will pass QUALITY INSPECTIONS before shipment.
3. About 10 years experience in exporting to make your order more smooth.
4. Less than one container loading is accepted.
5. On time delivery,
6. Special dimensions available according to request.

Q&A
Q1. Can I have a free sample for this product?
A: Sure, we can provide the free samples for you to check the quality.
Q2. What the lead time for the product?
A:Sample needs 3-5 days, mass production time needs around 3 weeks according to quality.
Q3. How do you ship the goods?
A: We usually ship by SEA, AIR, DHL, and etc.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, normally 1-2 years warranty to our formal products.



Store and shipment:
