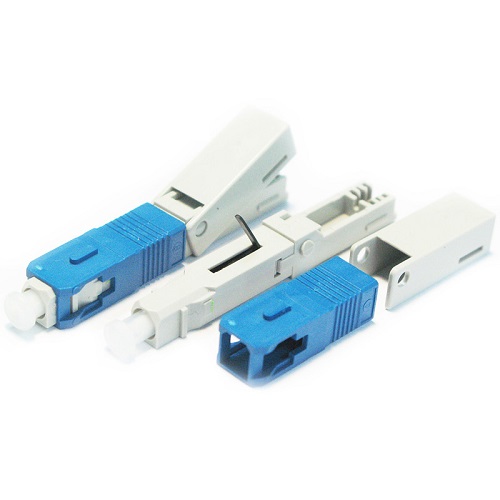

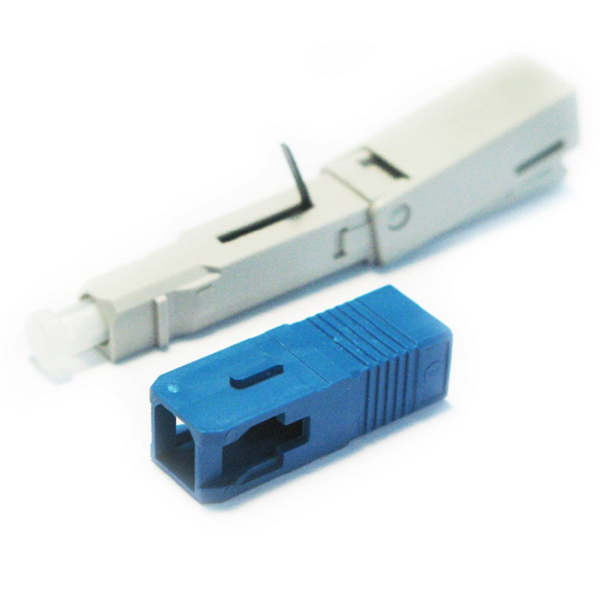

FTTH SC/UPC Fast Connector

Y001-SC/UPC

Feature:
•Factory-installed fiber stub.
•No epoxy and polishing required, No special tools needed when installed.
•Allows up to three re-termination result.
•Easily installed, Quick and easy fiber termination in the field.
•Only 30 seconds needed to learn the process of installation and making.
•Cost effective, Warranty: One year.
•Fast connecting and repeat, No special tools needed when installed.
•Can be made on-site without splicing connectors.
•Eliminates cable excess length and pigtail splice storage.
•Can be installed and made repeatedly thus avoiding loss.



Applications:
• Patch panels
•Distribution frames
•Maintenance or emergency restoration of fiber networks
•FTTH Outlets
•Connection at the desk for LAN environments
•Fiber Optic Patch Cord & Pigtail
•Telecommunication Devices
•Data Communications Networks
•Optical Fiber LAN and Access Network
• Industry and Military Applications

Data Sheet:

Optical Fiber	Plug Type	Diameter of Fiber	Fiber Mode	IL	RL	Tensile Strength	Thermal Shock
2.0mm×3.1mm Butterfly type	SC/UPC	0.125mm	Single Mode	﹤0.5dB (0.2dB typical)	﹥55dB	﹥40N	ΔIL﹤0.3dB, ΔRL﹤5dB

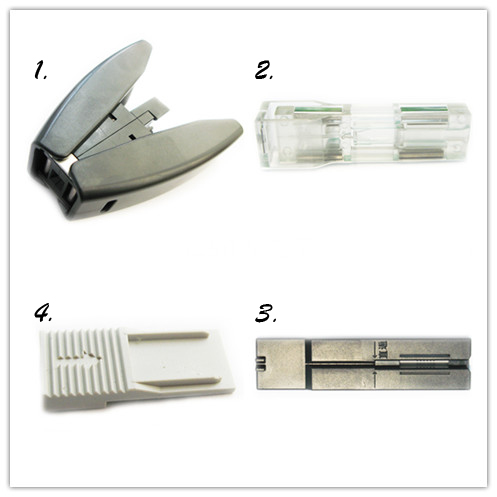

Main Component
No.	Name of components	Quantity	Remarks
1	Butterfly fiber optic cable crimpers	1 set	suitable for 2.0mm*3.0mm butterfly fiber optic cable
2	Mechanical stripper	1 set	suitable for Z/Y/APC
3	Fixed-length cutting template	1set	suitable for 2.0mm*3.0mm butterfly fiber optic cable
4	Back cover open tool	1 set	Suitable for Z/Y/APC

 Package:

No.	specification	Carton size(cm)	Capacity	N.W	Remarks
1	outer  box	44×37×28	2000pcs	10.00KG	Configuration as per weight

Services:
1. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2. All of our goods will pass QUALITY INSPECTIONS before shipment.
3. About 10 years experience in exporting to make your order more smooth.
4. Less than one container loading is accepted.
5. On time delivery,
6. Special dimensions available according to request.

Q&A
Q1. Can I have a free sample for this product?
A: Sure, we can provide the free samples for you to check the quality.
Q2. What the lead time for the product?
A:Sample needs 3-5 days, mass production time needs around 3 weeks according to quality.
Q3. How do you ship the goods?
A: We usually ship by SEA, AIR, DHL, and etc.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, normally 1-2 years warranty to our formal products.



Store and shipment:
