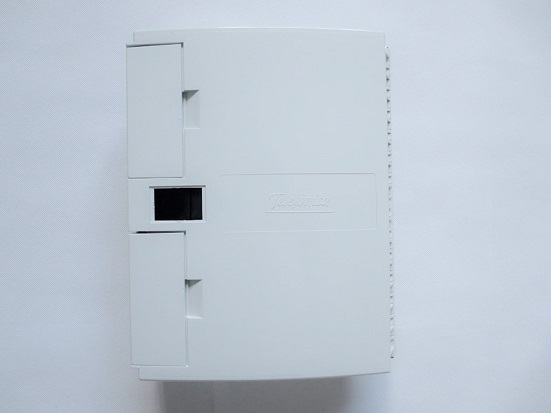

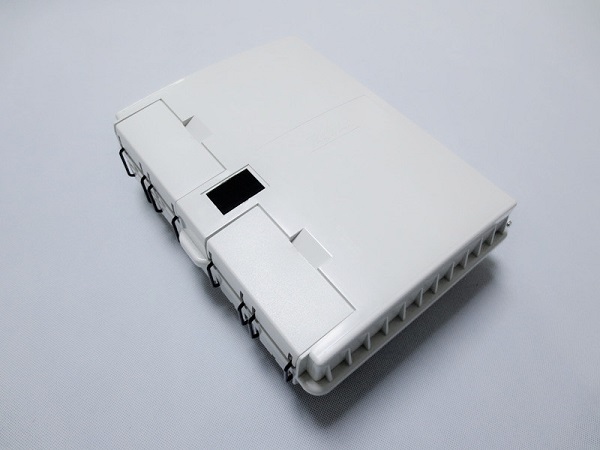

STB module Terminal Box

Telefonica provided product

 Applications

•This box is used in terminating cables of secondary telephone network to the cable pairs of subscriber line.
• It consists of the housing and STB modules.

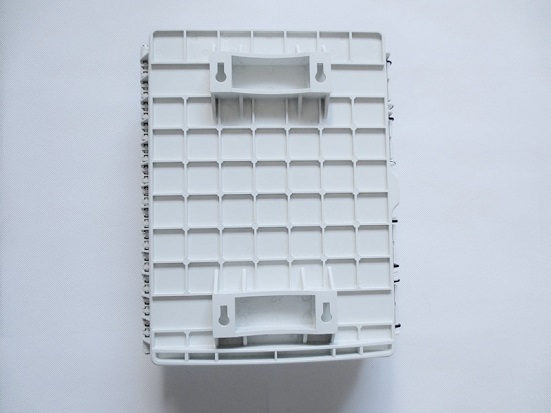

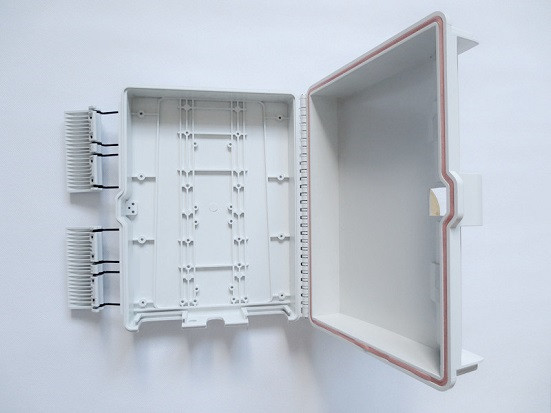

• The housing consists of body and cover, which house STB modules on the back mount frames.
• The STB modules provide a connection between an exchange side cable pair and a distribution pair.
• It is for outdoor applications.

Main Features
• Made of highly impact resistant ABS+PC
• Flammability according to UL 94 FV0
• Protection IP 65
• Fit for 25 STB module + one test module
• DIN Reel available
• Easy operation and wide range of wire

Specifications:

Model	Capacity	Size	N.W (kg/pcs)
FTT-H216U-B	25 STB module +   one test module	395mm(L)×240mm(W) ×90mm(H)	1.1
